The following figure shows the operation interface of the Spark system:
The following will be introduced one by one.

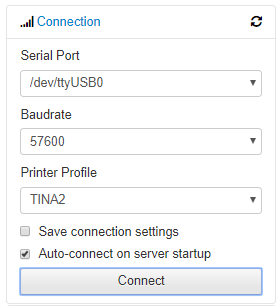

The device connection bar is used to set the port and communication speed used by Spark to connect to the printer, as well as the model number of the connected printer.

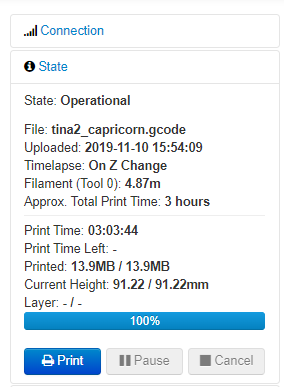

The print status bar displays detailed information about the current print job, such as file name, print progress, print time, etc.。

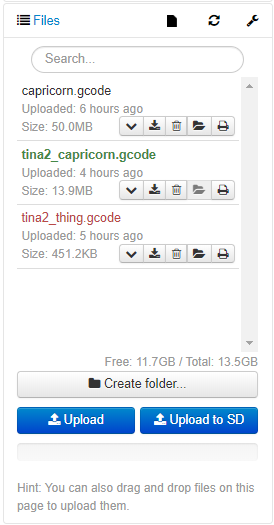

The file management bar displays a list of printable files, as well as functions such as uploading and deleting.
For details, see，Spark System file management

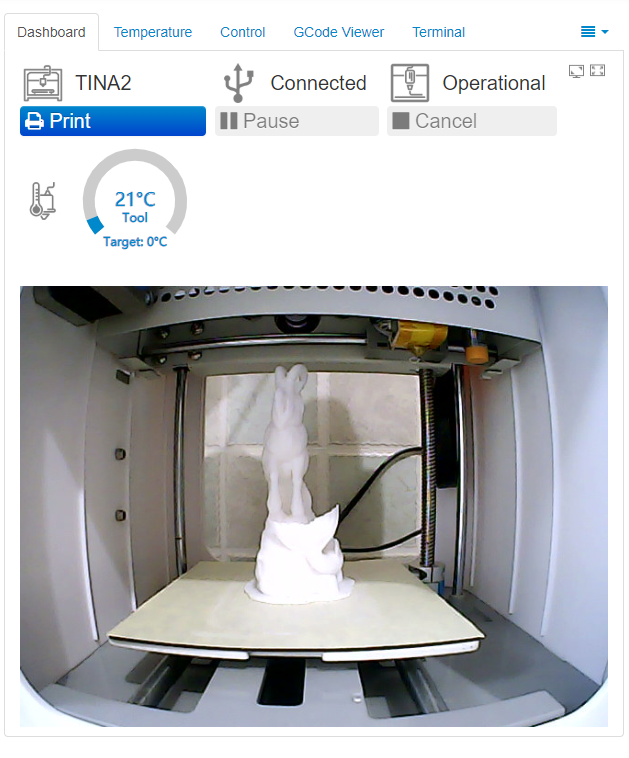

The print status panel displays the online status of the 3D printer, information about the current print job, and real-time status data of the printer.
Print the operation buttons of the status panel：
Print: Start printing Pause: Print pause Resume: Continue printing Cancel: Cancel printing

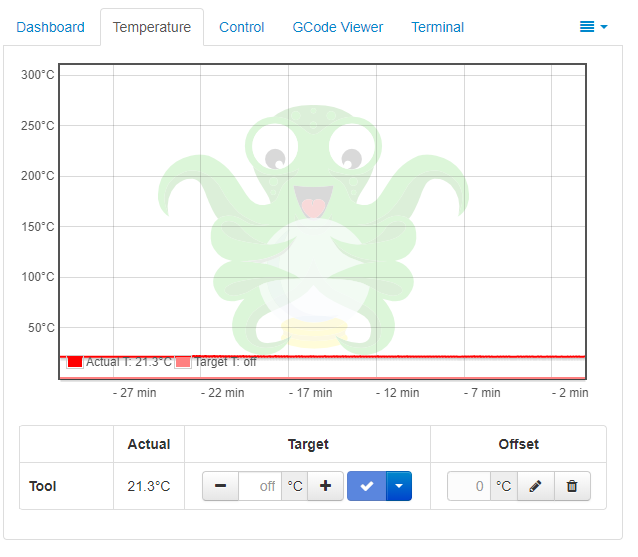

The temperature control panel displays the temperature profile of the nozzle and the heating platform, and can manually set the temperature of the nozzle and the heating platform.
The manual control panel is used to control the homing of the printer and the jog control of each motion axis of the printer.
The GCode path preview panel is used to preview the path information in GCode.
During the printing process, the path information of the current print layer can be displayed in real time.
Please note: Due to memory limitations, Spark can preview GCode files no larger than 20M

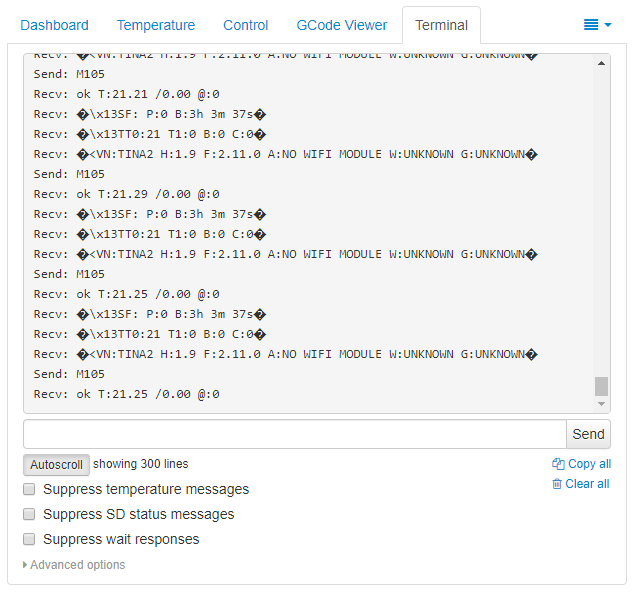

The communication terminal panel displays real-time communication data between the Spark system and the printer, and can also manually send GCode commands to the printer.

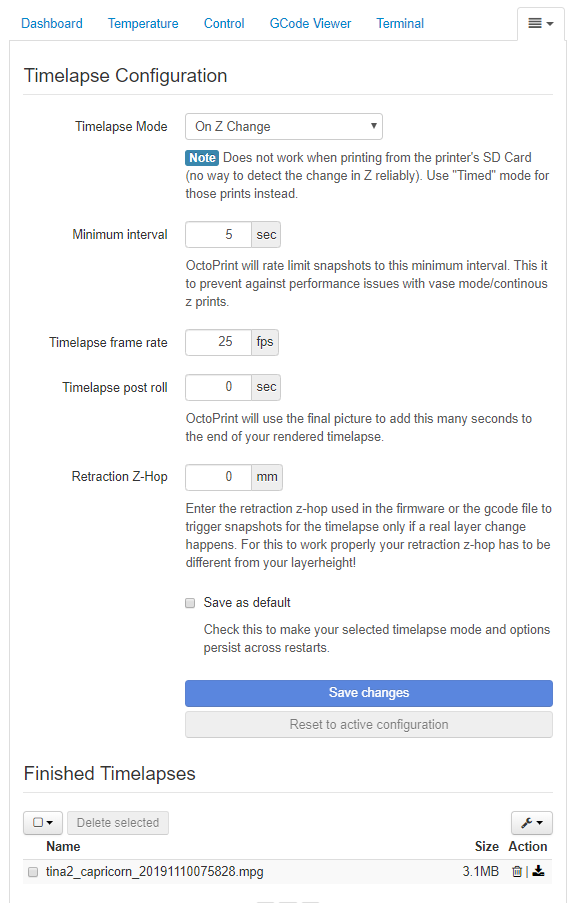

The Auto Recording Panel sets the parameters for automatic recording and downloads the recorded video files.
Please participate in the specific operation,Spark System print recording management
